当前位置:首 页 - 产品中心 -
产品展示
 产品 >> 所有产品 共有 307 个产品

PAN1311
Embedded Bluetooth 2.0+EDR Module without antenna
Our 2.4GHz Class 2 BlueTooth modules are very small, very low power and pin compatible with each other.

更多资料

产品规格书


PAN1310
HCI Bluetooth 2.0+EDR Module without antenna

更多资料

产品规格书


Bluetooth Overview
An overview of the selection of Bluetooth products.
Our 2.4GHz Class 2 BlueTooth modules are very small, very low power and pin compatible with each other.

更多资料



IRPS
This simple IR proximity sensor uses ’modulated burst’ sensing method to avoid false triggering and interference

更多资料

产品规格书


CTA28 App boards
The CTA88 chip is a simple encoder/decoder for use with ISM band telemetry modules. It permits a simple, one way wireless link to be established, for simple remote control applications, with a minimum of effort and no customer software input.

更多资料

产品规格书


BiM3H
UHF FM 400mW transceiver module
The BIM3H UHF radio data transceiver allows the simple implementation of data links at speeds up to 10kbps and distances up 5000 metres over open ground.

更多资料

产品规格书


SFX2
The SFX2 transceiver module offers a 500mW RF power output in the UK 458MHz band.

更多资料

产品规格书


BL118
Bi-directional low power RF Remote Control application boards
These simple application boards use firmware based on the BD118 remote control systems to implement a bi-directional control link.

更多资料

产品规格书


BD118
These simple application boards use firmware based on the familiar CTA88 remote control systems to implement a bi-directional control link.

更多资料

产品规格书


CXT2
Multi channel 25kHz NBFM remote control Transmitter
The CXT transmitter and CXR receiver modules offer a multi channel, low power, and reliable remote control data link

更多资料

产品规格书


M48A
The M48A is a 4800baud half-duplex serial modem controller suitable for use with narrow band receivers, transmitters and transceivers.

更多资料

产品规格书


TDL3F
869/915MHz band Radio modem A TDL3F is a single channel, 869 or 915MHz wideband, transparent data link. It has a TDL2A pin out (and firmware), but uses a BiM3 series radio module.

更多资料

产品规格书


M48A Application Board
The apps board presents the M48 modem, combined with a radio module (either USX or BiM/NiM family) and suitable interface circuits, power supplies and connectors

更多资料

产品规格书


M48-434-NiM2
The M48-434-NiM2 presents M48 modem IC combined with a NiM2 radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface

更多资料

产品规格书


DWA3
The DWA3 is a single channel, 869 or 915MHz wideband, transparent data link with a built-in ceramic patch antenna. It has a TDL2A pin-out (and firmware), but uses a BiM3 series radio module.

更多资料

产品规格书


RPM1
VHF Radio Packet Modem
The VHF Radio Packet Modem (RPM1) is a low cost intelligent radio packet modem that enables a two way radio network/link to be simply implemented between a number of digital devices.

更多资料



TR3M

Narrow Band FM Multi-channel UHF Transceiver
25kHz channel narrowband transceiver
 Operating on the European 868MHz band Non-Specific SRD allocation.
Offers a low power, reliable data link in an industry-standard pin out and footprint.



更多资料

产品规格书


M48-458-TR2I
Multi-channel Radio Modems
The M48-458-TR2I presents M48 modem IC combined with a TR2I radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface. Optionally, the board can be housed in an EAS120 extruded aluminium housing

更多资料

产品规格书


M48-458-BHX2
Multi-channel Radio Modems
The M48-458-BHX2 presents M48 modem IC combined with a BHX2 radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface. Optionally, the board can be housed in an EAS120 extruded aluminium housing

更多资料

产品规格书


M48-433-USX2
Multi-channel Radio Modems
The M48-433-USX2 presents M48 modem IC combined with a USX2 radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface. Optionally, the board can be housed in an EAS80 extruded aluminium housing

更多资料

产品规格书


M48-144-SHX1
Multi-channel Radio Modem
she M48-144-SHX1 presents M48 modem IC combined with a SHX1 radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface. Optionally, the board can be housed in an EAS120 extruded aluminium housing

更多资料

产品规格书


FPL3
Multi-channel Radio Modems
The FPL3 is a 9600baud half-duplex multi channel OEM radio modem with a power output of 400mW. FPL3 operates in the Europe-wide 869.40 - 869.65MHz sub-band. It is also available in the Indian licence free 865 - 867MHz band (General telemetry and RFID).

更多资料

产品规格书


TXL2
Multi-channel Radio Modems
UHF Multi Channel Transparent Data Link TX
9600baud simplex multi channel OEM radio modems
Radiometrix SIL standard footprint,
Operating on European 433MHz ISM band.

更多资料

产品规格书


SHX1
Multi-channel Narrowband with Internal Modem
SHX1 is small multi-channel narrow band VHF transceiver with 500mW RF power output. It is usable for 144MHz band amateur, 151MHz US MURS and European 169MHz band high power applications.

更多资料

产品规格书


QPX1
Multi-channel Narrowband with Internal Modem
2 Watt Multi-channel VHF Transceiver
2 watt RF output VHF radio link
Robust aluminium extruded casing.
Multi-channel, narrowband design
Suitable for licensed and unlicensed VHF allocations, FCC part 90 operation, and the 2M amateur band.

更多资料

产品规格书


BHX2
Multi-channel Narrowband with Internal Modem
NBFM Multi-channel 500mW UHF Transceiver
Offers a 500mW RF power output in the UK 458MHz band.
Ideally suited to those low power applications where existing multichannel narrow band devices like TR2M have insufficient range

更多资料

产品规格书


WFX2
Multi-channel Narrowband with Internal Modem
500mW High power, Fast, 458MHz Multi-channel Transceiver
Fast switching 500mW
RF power output
Range over 5km
Narrowband

更多资料

产品规格书


TX2S
Wideband TX
UHF FM Data Transmitter Module
The TX2S module is a miniature PCB mounting UHF radio transmitter which enable the simple implementation of a data link at up to 40 kbps at distances up to 75 metres in-building and 300 metres open ground.

更多资料

产品规格书


TX3H
Wideband TX
UHF FM Wide Band 450mW Transmitter
The TX3H-869.5-10 is an 869.5MHz FM transmitter module with a power output of 450mW nominal.

更多资料

产品规格书


QPT1
Narrowband Multi-channel TX with 1200 baud modem
VHF Narrow Band FM 2 Watt Multi-channel transmitter
Aluminium extruded casing, or smaller footprint PCB mounted shield can.
Suitable for licensed & unlicensed VHF allocations, FCC part 90 operation
With LMR1 or RX1M receiver over 10km range achievable (with suitable antenna)

更多资料

产品规格书


M1144
application boards constitute a bidirectional Mesh networked remote control system. Each board has 1-input, 1-output, a 4-bit global address and a 4-bit Unit ID (hence "M1144"). A complete system consists of a master board (which initiates communication burst cycles) and up to 15 slave units.

更多资料

产品规格书


DXT/DXR
hese simple application boards use the firmware and signalling protocols of the existing CTX/CRX module products, interfaced with a choice of SIL package radio modules. A single relay output is provided, controlled by a pair of logic (or switch) inputs on the transmitter. Latched or momentary operation are selectable.

更多资料

产品规格书


NiM2B
Single-channel Narrowband
The narrow band NiM2B transceiver offers a low power, reliable data link in a Radiometrix transceiver standard pin out and footprint.

更多资料

产品规格书


NiM1B
Single-channel Narrowband
The narrow band NiM1B transceiver offers a low power, reliable data link in a Radiometrix transceiver standard pin out and footprint. The NiM1B is a frequency programmable, narrowband design, suitable for licensed and unlicensed VHF allocations and FCC part 95 (MURS) operations.

更多资料

产品规格书


FPX3
Multi-channel Wideband
FPX3 is a small, high power (half-watt) multi-channel wide band FM transceiver, operating in the Europe-wide 869.40 - 869.65MHz sub-band. It is also available in the Indian licence free 865-867MHz band (General telemetry and RFID).

更多资料

产品规格书


BiM2G/BiM3G
Single-channel Wideband
The BIM2/3G data radio module is a PLL synthesiser based miniature PCB mounting UHF radio transceiver which enable the simple implementation of a wireless data link at up to 128 kbps at distances up to 75 metres in-building and 300 metres open ground.

更多资料

产品规格书


AiM1
Single-channel Narrowband
The narrow band AiM1 transceiver offers a low power, reliable data link in a Radiometrix transceiver standard pin out and footprint. The AiM1 is a frequency programmable, narrowband design, suitable for licensed and unlicensed VHF allocations, FCC part 90, part 95 (MURS) operation, and the 2M amateur band.

更多资料

产品规格书


WRX2C
Wideband RX
The WRX2C is a low cost wide band FM receiver with quasi-DC data slicer in a Radiometrix SIL standard pin out and footprint. It offers an economical and reliable low power data link without compromising the receiver performance.

更多资料

产品规格书


WRX2
Single-channel UHF
The WRX2 is a low cost wide band FM receiver in a Radiometrix SIL standard pin out and footprint. It offers an economical and reliable low power data link without compromising the receiver performance.

更多资料

产品规格书


NRX0
Single-channel VHF
The 10kHz channel NBFM NTX0 transmitter and NRX0 receiver operate on the licence exempt 27MHz SRD HF allocation. These modules offer a low power, reliable data link in a Radiometrix SIL standard pin out and foot print

更多资料

产品规格书


MSR3
Narrowband Multi-channel RX
The MSR3 is a 25kHz channel narrowband receiver intended for European 868MHz band Non-Specific SRD applications. The module offers a low power, reliable data link in an industry-standard pin out and footprint.

更多资料

产品规格书


LMR0
Narrowband Multi-channel RX
The LMT0 transmitter and LMR0 receiver modules offer a 10kHz channel spacing multi channel, low power, and reliable HF data link

更多资料

产品规格书


SAT3
Single-channel
The SAT3 transmitter modules operate on 869.2125MHz frequency and offer a 10mW RF output data link in Radiometrix SIL standard pin-out and footprint.

更多资料

产品规格书


NTX2B
Single-channel
Available for licence-exempt operation in the 433MHz (EU) and 458MHz (UK) bands, the NTX2B module combine effective screening with internal filtering to minimise spurious radiation and susceptibility thereby ensuring EMC compliance.

更多资料

产品规格书


NTX0
Single-channel
The 10kHz channel NBFM NTX0 transmitter and NRX0 receiver operate on the licence exempt 27MHz SRD HF allocation. These modules offer a low power, reliable data link in a Radiometrix SIL standard pin out and foot print

更多资料

产品规格书


MTX3
Narrowband Multi-channel TX
The MTX3 transmitter module adds a totally new sub-miniature form factor to the existing range of Radiometrix ISM band devices. Using cutting edge integrated RF devices, it offers multi channel, low power narrowband operation in a previously unobtainable size.

更多资料

产品规格书


MTX2
Narrowband Multi-channel TX
The MTX2 transmitter module adds a totally new sub-miniature form factor to the existing range of Radiometrix ISM band devices. Using cutting edge integrated RF devices, it offers multi channel, low power narrowband operation in a previously unobtainable size.

更多资料

产品规格书

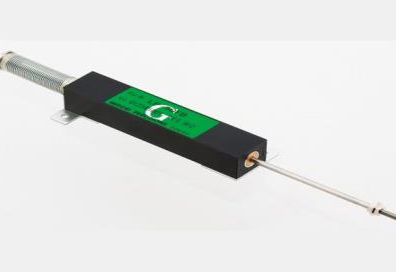

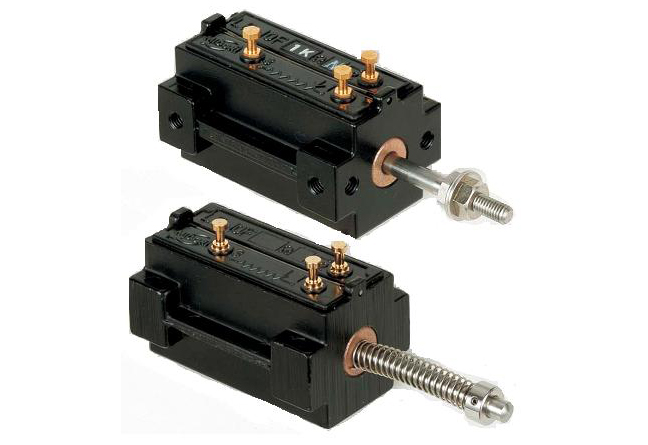

LP-50FB
● 导电塑料直线位移传感器
● 电阻值 :1k、2k、5k、10kΩ  ±20%
● 有效量程 :50mm±0.5mm
● 独产线性度 :±0.5%
● 20×18×98mm
● 外壳使用压铸铝
● 废除 500Ω
*  内置回位弹簧


更多资料

产品规格书

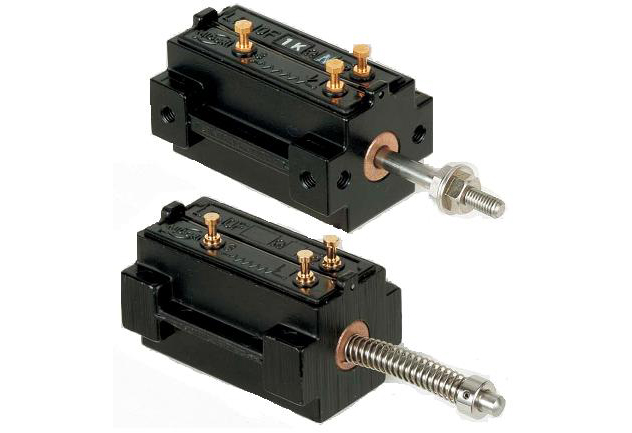

LP-50F
● 导电塑料直线位移传感器
● 电阻值 :1k、2k、5k、10kΩ  ±20%
● 有效量程 :50mm±0.5mm
● 独立线性度 :±0.5%
● 20×18×98mm
● 外壳使用压铸铝
● 废除 500Ω


更多资料

产品规格书

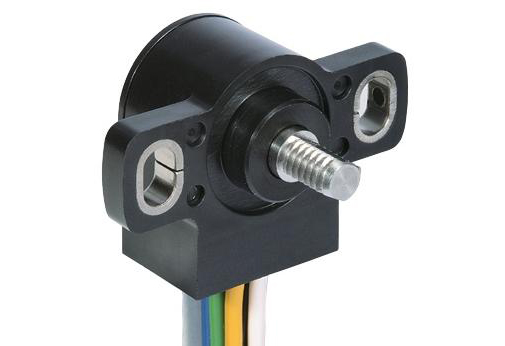

CP-16U
● 磁性电阻非接触式传感器
● 使用电压 :DC3~5.5V
● 有效电气角度 :±45°
● 独立线性度 :±1.5%
● 输出范围 :3.5~6.5%Vin/10°
● 尺寸大小 :Φ16×21mm


更多资料

产品规格书

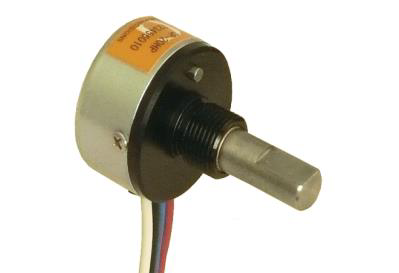

CP-2FL-6
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10kΩ±20%
● 有效电气角度 :340°
● 独立线性度 :±2%
● 尺寸大小  :Φ 23×12.5mm
● 滑动轴承
● 可提供轴径 :Φ 3.175mm


更多资料

产品规格书


CP-2FCG-6

● 导电塑料角度传感器
● 体积小巧              : Φ22mm
● 转轴直径              : Φ6.0mm
● 额定功率              : 0.5W
● 有效电气角度
: 340°(标准)
● 全阻抗值              : 1K, 和 5K Ω

● 轴套型安装,内置连接器
● 聚四氟乙烯涂层轴承,带O形环



更多资料

产品规格书


CP-2FC-6

● 导电塑料角度传感器
● 体积小巧                  : Φ22mm
● 转轴直径                  : Φ6.0mm
● 额定功率                  : 0.5W
● 有效电气角度            : 340°(标准)
● 全阻抗值                  : 1K, 和 5K Ω

● 轴套型安装,内置连接器
● 聚四氟乙烯涂层轴承



更多资料

产品规格书

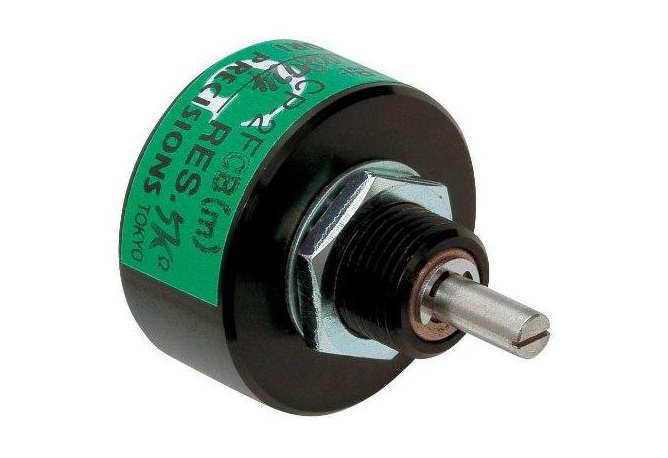

CP-2FCB(m)

● 导电塑料角度传感器
● 体积小巧              : Φ22mm
● 转轴直径              : Φ3.175mm 金属套筒轴承
● 额定功率              : 0.5W
● 有效电气角度        : 340°(标准)
● 全阻抗值              : 1K, 和 5K Ω

● 轴套型安装,内置连接器
● 金属套筒轴承



更多资料

产品规格书

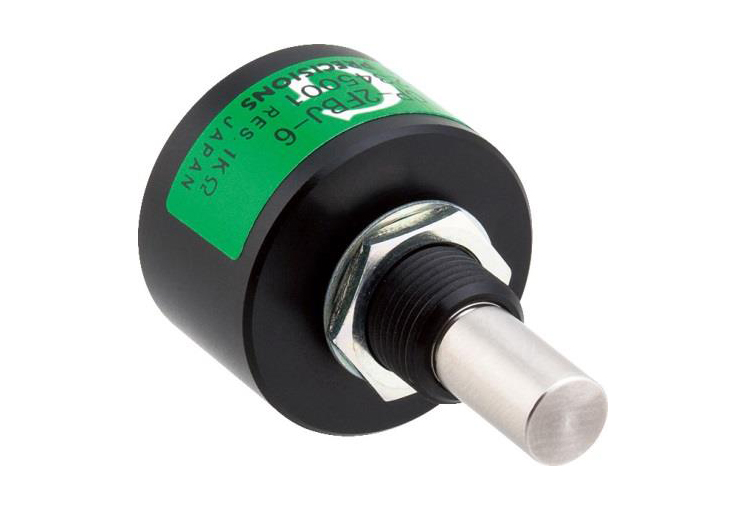

CP-2FBJ-6

● 导电塑料角度传感器
● 体积小巧            : Φ22mm
● 转轴直径            :   Φ6.0mm
● 额定功率            : 0.5W
● 有效电气角度      : 340°(标准)
● 全阻抗值            : 1K, 2K, 5K, 和 10K Ω

● 轴套型安装
● 聚四氟乙烯涂层轴承



更多资料

产品规格书


CP-2FK(m)J

● 导电塑料角度传感器
● 体积小巧                        :  Φ22mm
● 转轴直径                        :  Φ3.175mm
● 额定功率                        : 0.5W
● 有效电气角度                  : 340°(标准)
● 全阻抗值                        : 1K, 2K, 5K, 和 10K Ω

● 伺服型安装
● 金属套筒轴承



更多资料

产品规格书

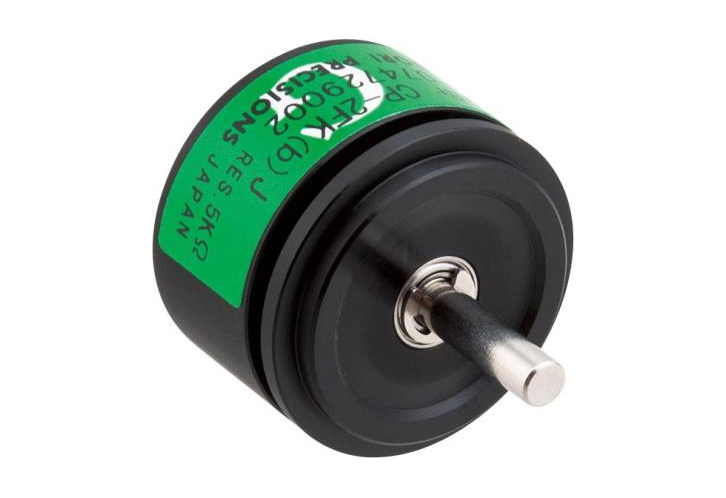

CP-2FK(b)J

● 导电塑料角度传感器
● 体积小巧                 : Φ22mm
● 转轴直径                 : Φ3.175mm
● 额定功率                 : 0.5W
● 有效电气角度           : 340°(标准)
● 全阻抗值                 : 1K, 2K, 5K, 和 10K Ω

● 伺服型安装
● 滚珠轴承



更多资料

产品规格书


CP-2FB(m)J

● 导电塑料角度传感器
● 体积小巧               : Φ22mm
● 转轴直径               : Φ3.175mm
● 额定功率               : 0.5W
● 有效电气角度         : 340°(标准)
● 全阻抗值               : 1K, 2K, 5K, 和 10K Ω

● 轴套型安装
● 金属套筒轴承



更多资料

产品规格书

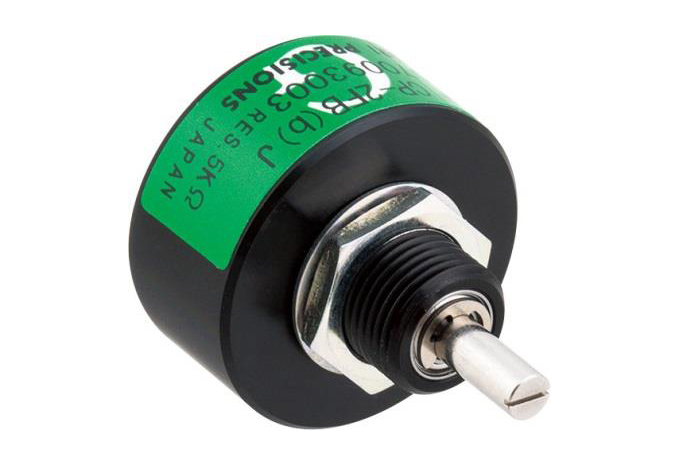

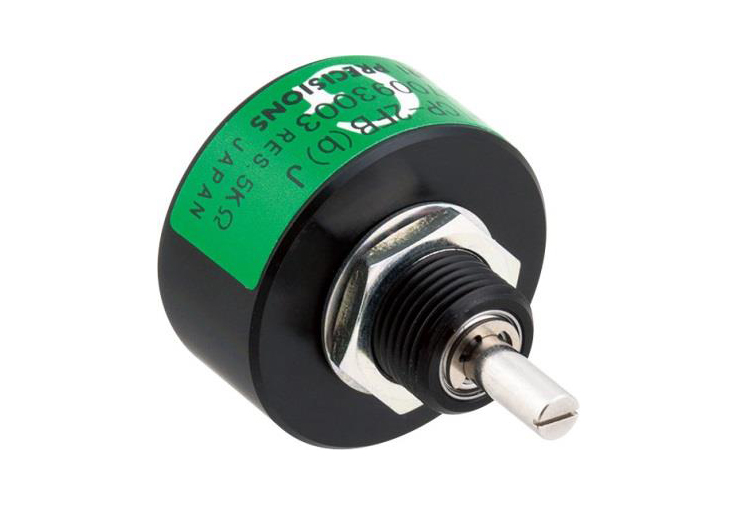

CP-2FB(b)J

● 导电塑料角度传感器
● 体积小巧                 : Φ22mm
● 转轴直径                 : Φ3.175mm
● 额定功率                 : 0.5W
● 有效电气角度           : 340°(标准)
● 全阻抗值                 : 1K, 2K, 5K, 和 10K Ω

● 轴套型安装
● 滚珠轴承



更多资料

产品规格书


VHF Helical - BNC
Description Flexible over moulded portable helical antenna.
Fully covered connector.
Frequency 144MHz, 151MHz, 169MHz, 173MHz Polarity VERTICAL
Radiation Omni directional
Gain 0dB

更多资料



VHF / UHF Helical - SMA, Economy Range
Description Flexible over moulded portable helical antenna.
Frequency 433MHz ± 4MHz
Polarity VERTICAL
Radiation Omni directional
Gain 0dB

更多资料



UHF Helical - SMA
Description Flexible over moulded compressed helical antenna.
Frequency 433MHz or 869MHz
Polarity VERTICAL
Radiation Omni directional
Gain -2dBd
Connector SMA

更多资料



UHF Helical - Right Angle SMA
Description Flexible over moulded portable helical antenna.
Frequency 433MHz
Polarity VERTICAL
Radiation Omni directional
Gain 0dB
Connector Right Angle SMA

更多资料



UHF Helical - BNC
Description: Flexible over moulded portable helical antenna.
Frequency: 433MHz ± 4MHz
Polarity: VERTICAL
Radiation: Omni directional
Gain: 0dB

更多资料



UHF 14 wave whip - RPSMA
Description: Flexible over moulded portable monopole antenna.
Fully covered connector.
Frequency: 914MHz Polarity: VERTICAL
Radiation: Omni directional
Gain: 0dB
Connector: Reverse Polarity SMA

更多资料



UHF 1/4 wave whip - BNC
Description:Flexible over moulded portable monopole antenna.
Fully covered connector. Frequency: 433MHz, 458MHz, 869MHz, 914MHz
Polarity: VERTICAL
Radiation: Omni directional
Gain: 0dB

更多资料



Stubby UHF Helical - BNC
Description Flexible over moulded portable helical antenna.
Fully covered connector.
Frequency 433MHz, 458MHz, 869 or 914MHz
Polarity VERTICAL
Radiation Omni directional
Gain 0dB Part no: ANT-XXX-H-BNC (where XXX is 433, 458, 869 or 914)

更多资料



QR96
The Quasi DC Recovery circuit (QR96) can be used to improve data recovery of receiver if the raw data is transmitted without any bit balancing. The QR96 measures the minimum and maximum levels of the AF output of the receiver, averages that and compares the original AF output signal with it.

更多资料

产品规格书


UHF Helical Coil
Low cost helical wire spring antenna.
Frequency: 433MHz, 868MHz
Polarity: VERTICAL
Radiation: Omni directional
Gain: 0dB
VSWR: 1:1.5
Power: 5W
Impedance: 50 ohms

更多资料



AFS2
500mW RF power amplifier module
AFS2 amplifier module is intended to increase the transmitted power of a TR2M transceiver module and also usable with other 100mW output devices, such as USX2, TX2M and LMT2.

更多资料

产品规格书


Universal Evaluation Kit
This Evaluation Kit can be used to evaluate single frequency Radiometrix VHF/UHF transmitter, receiver and transceiver modules. LED indicators are provided to show system status and to facilitate range testing and site surveys

更多资料

产品规格书


TDL2A Evaluation Kit
TDL2A Evaluation Kit enables user to evaluate transparent data link capability of TDL2A OEM modems

更多资料

产品规格书


SPM2RPM Evaluation Kit
The SpacePort Modem Evaluation board enables SPM / RPM to be transformed in to a complete Radio modem with DCE type RS232 interface.

更多资料

产品规格书


SP2 Evaluation Kit
SpacePort Evaluation Kit can be used to evaluate the Radiometrix SpacePort, Radio Packet Controller modules. LED indicators are provided to show system status and to facilitate range testing and installation site surveys

更多资料

产品规格书


Narrow Band Module Evaluation Kit
Narrow Band Evaluation Kit (NBEK) can be used to evaluate all Narrow Band Multi-channel and Single frequency DIL version modules

更多资料

产品规格书


Control44 Evaluation Kit
Control44 Evaluation Kit enables user to evaluate Control44 Encoder/Decoder and appropriate single frequency Radiometrix module for a wireless remote control system

更多资料

产品规格书


CTA88 Remote Control Application Boards
The CTA88 chip is a simple encoder/decoder for use with ISM band telemetry modules. It permits a simple, one way wireless link to be established, for simple remote control applications, with a minimum of effort and no customer software input

更多资料

产品规格书


M48-458-SFX2
The M48-458-SFX2 presents M48 modem IC combined with a SFX2 radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface.

更多资料

产品规格书


LMT0
The LMT0 transmitter and LMR0 receiver modules offer a 10kHz channel spacing multi channel, low power, and reliable HF data link

更多资料

产品规格书


KDEC
Code hopping receiver with up to 5 relay outputs
KDEC is designed to provide the user with a complete receiver interface for Radiometrix transmitters such as KTX2 and KFX2. No additional parts needed to implement a complete system suitable for applications requiring high security RF remote control.

更多资料

产品规格书


KRX416
Code-hopping decoder with 4 outputs
Single IC solution for decrypting & decoding code-hopping transmitters
Will retain identities of up to 16 code-hopping transmitters, even when power supply removed
Designed for use in RF keyless remote control applications.

更多资料

产品规格书


CTR44
CTR44: 4 bit Address - 4 bit Data Encoder / Decoder
Control44 is a 4 bit address, 4 bit data encoder and decoder combined in a single IC. This device can operate in either Encode or Decode mode. It uses 1kbps differential Manchester bit balancing with preamble and checksum.

更多资料

产品规格书


CTR124
CTR124: 4 bit Address - 12 bit Data Encoder / Decoder
Control124 is a 4 bit address, 12 bit data encoder and decoder combined in a single IC. This device can operate in either Encode or Decode mode. It uses 1kbps differential Manchester bit balancing with preamble and checksum.

更多资料

产品规格书


CTA88
8 bit Address - 8 bit Data encoder/decoder
CTA88 is an 8 bit address, 8 bit data encoder and decoder combined in a single IC. This device is intended to be used with ISM band telemetry modules and can be operated in either Encode or Decode mode.

更多资料

产品规格书


KTX2
UHF FM Code-Hopping Data Transmitter
The KTX2 is a miniature PCB mounting code-hopping UHF radio transmitter suitable for use in secure remote keyless control applications at distances up to 75 metres in-building or 300 metres open ground.

更多资料

产品规格书


KRX2
UHF FM Code-Hopping Receiver Module
KRX2 is a small PCB mounting UHF integrated receiver-decoder module that is ready-to-use with our UHF FM code-hopping transmitters for secure wireless remote control and keyless security systems.

更多资料

产品规格书


KFX2
UHF FM code hopping remote control keyfob transmitter
The KFX2 is a UHF code hopping 5 button keyfob transmitter for use with the matching KDEC decoder or KRX-416-000-DIL decoder IC to provide a remote controlled link in excess of 100 metres over open ground.

更多资料

产品规格书


CXR2
Multi channel 25kHz NBFM remote control Receiver
The CXT transmitter and CXR receiver modules offer a multi channel, low power, and reliable remote control data link

更多资料

产品规格书


SP2
160kbps Radio Packet Controller
The SP2-433-160 is a highly integrated intelligent transceiver module, which enable a radio network/link to be simply implemented between a number of digital devices. The module combines a UHF radio transceiver and a 160kbps Fast Radio Packet controller (FRPC).

更多资料

产品规格书


RPC3G
The RPC3G is an intelligent transceiver modules, which enable a radio network/link to be simply implemented between a number of digital devices.

更多资料

产品规格书


RPC2A
UHF Radio Packet Controller
The RPC2A-433-64 is intelligent transceiver modules, which enable a radio network/link to be simply implemented between a number of digital devices. The module combines a UHF radio transceiver and a 64kbps packet controller.

更多资料

产品规格书


NBEK IC
NBEK Controller As 1200 Baud Modem
The Narrow band Evaluation Kit (NBEK) IC can be used as 1200baud half-duplex serial modem suitable for narrow band receivers, transmitters and transceivers (or any RF modules with >5kbps data rate).

更多资料

产品规格书


i9600
The I9600 is a 9600baud half-duplex serial modem controller suitable for use with wideband receivers, transmitters and transceivers. It takes care of preamble, synchronisation, bit balancing and error checking and enables a transparent radio data link to be established between radio devices.

更多资料

产品规格书


SPM2
UHF SpacePort Modem
The SpacePort Modem (SPM) is a low cost highly integrated intelligent radio packet modem that enables a radio network/link to be simply implemented between a number of digital devices

更多资料

产品规格书


RPM3
UHF Radio Packet Modem
The UHF Radio Packet Modem (RPM3) is a low cost intelligent radio packet modem that enables a two way radio network/link to be simply implemented between a number of digital devices

更多资料

产品规格书


RPM2A
UHF Radio Packet Modem
The UHF Radio Packet Modem (RPM2A) is a low cost intelligent radio packet modem that enables a two way radio network/link to be simply implemented between a number of digital devices.

更多资料

产品规格书


M48-169-BiM1H
The M48-169-BiM1H presents M48 modem IC combined with a BiM1H radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface. Optionally, the board can be housed in an EAS80 extruded aluminium housing

更多资料

产品规格书


CPX2
The CPX2s a 2,700 baud half-duplex serial radio packet modem module operating on licence-exempt European 433.05-434.79MHz SRD band.

更多资料

产品规格书


CLX2
19200 baud Modem Transceiver
19,200baud half-duplex serial radio modem module
Licence-exempt European 433.05-434.79MHz SRD band
Intermediate level OEM radio modem
Takes care of preamble, frame synchronisation and error checking.

更多资料

产品规格书


RXL2
UHF Multi Channel Transparent Data Link Receiver
9600baud simplex multi channel OEM radio modems
Radiometrix SIL standard footprint
Operating on European 433MHz ISM band

更多资料

产品规格书


TR2I/TR2M
UHF Narrow Band FM Multi channel Transceiver
The TR2M transceiver module offers a low power, reliable data link in an industry-standard pin out and footprint. Two versions are available, covering the 458.5-459.1MHz UK band (at 100mW) and the European 433.05-434.79MHz band (at 10mW).

更多资料

产品规格书


TR1M
VHF Narrow Band FM Multi channel Transceiver
The TR1M narrow band multi channel transceiver module is intended as a general purpose VHF data communication unit. It is available on any frequency between 135 and 175MHz (in 3MHz bands) and delivers up to 100mW RF output

更多资料

产品规格书


TDL2A
UHF Multi Channel Transparent Data Link Transceiver
9600baud half-duplex intermediate level radio modem in BiM2 footprint
European 433MHz ISM band
Acts as a transparent serial cable to attached host
Available as TDL2T transmitter & TDL2R receiver for one way communication

更多资料

产品规格书


M48-869-FPX3
Multi-channel Radio Modems
The M48-869-FPX3 presents M48 modem IC combined with a 868MHz band FPX3 radio module and suitable interface circuits, power supplies, connectors to provide a complete RS232 radio modem interface

更多资料

产品规格书


TDM2
Multi-channel Radio Modems
Data Sheet(web) Data Sheet(pdf)
TDM2 UHF Multi Channel Radio Modem The TDM2 is a very simple 433MHz band radio data modem. It provides a medium ranged half duplex, transparent data link between a pair of 9600 baud RS232 ports without any additional interface circuitry

更多资料

产品规格书


TDi2
Multi-channel Radio Modems
RS232 Interface Board
TDi2 interface board enables a cable free transparent data link between RS232 ports without any additional interface circuitry.

更多资料

产品规格书


TDH2
Multi-channel Radio Modems
UHF High power serial modem
The TDH2 is a 9600baud half-duplex multi channel OEM radio modem with a power output of 25mW

更多资料

产品规格书


RDL2
Multi-channel Wideband
UHF Multi Channel Wide Band FM Transceiver
RDL2 is a half-duplex multi channel wideband FM transceiver in a BiM series footprint and operates on 433.05-434.79MHz European SRD band. This makes the RDL2 ideally suited to those low power applications where low cost multi-channel operation is required.

更多资料

产品规格书


BiM3B
Single-channel Wideband
869MHz Wide Band FM radio transceiver module
Enhanced high power replacement for BiM3A-869-64.
European unlicensed band
Two variants: 5mW (no duty cycle restriction) or 25mW (1% duty cycle restriction)
Usable range up to 300 metres external, 75 metres in building

更多资料

产品规格书


BiM3A
Single-channel Wideband
869/914MHz high speed FM radio transceiver module
The BiM3A radio transceiver module is similar in size and pinout to the BiM2, offering all the advantages of the latter but with reduced power consumption and antenna size. The BiM3A replaces the obsolete BiM3.

更多资料

产品规格书


BiM2A
Single-channel Wideband
433MHz Wide Band FM radio transceiver (BiM2H and BiM2EH)
BiM2A is half-duplex crystals controlled PLL wideband FM transceiver operating on 433.05-434.79MHz European SRD band.

更多资料

产品规格书


USX2
Multi-channel Narrowband with Internal Modem
NBFM Multi-channel UHF Transceiver with Programmable RF power
USX2 is small multi-channel half duplex UHF transceiver available for operation on 315MHz, 433MHz and 458MHz bands with the user programmable RF power output of up to 100mW

更多资料

产品规格书


UHX1
Multi-channel Narrowband with Internal Modem
Narrow band FM Multi-channel 500mW VHF Transceiver
compact size
dual frequency capability allows UHX1’s transmitter section to be operated on one frequency while receiver frequency on another
multi-channel VHF transceiver
with up to 500mW RF power output.

更多资料

产品规格书


SMX2
Multi-channel Narrowband with Internal Modem
UHF Narrow Band FM Multi channel Transceiver
SMX2 is small multi-channel UHF transceiver operating on 433.05MHz-434.79MHz European licence exempt band. SMX2 offers a fast-route to custom frequency on any UHF band from 431MHz to 436MHz with 25kHz channel spacing.

更多资料

产品规格书


SMX1
Multi-channel Narrowband with Internal Modem
VHF Narrow Band FM Multi channel Transceiver
SMX1 is small multi-channel VHF transceiver operating on 173.200MHz-173.325MHz band. SMX1 offers a fast-route to custom frequency on any VHF band from 130MHz to 180MHz with 25kHz channel spacing

更多资料

产品规格书


RMX2
Multi-channel Narrowband with Internal Modem
Narrow Band Direct Interface Multi Channel Transceiver
The RMX2 is an ETSI EN 300 220-3 compliant UHF FM narrow band semi-duplex radio data module. It is a high performance ransceiver designed for use in industrial applications requiring long range, high performance and reliability.

更多资料

产品规格书


ENX1
Single-channel Narrowband
12.5kHz channel NBFM VHF Transceiver
The ENX1 is a 12.5kHz channel NBFM Transceiver module and it offers a 100mW RF output VHF data link in a DIL pin-out and footprint.

更多资料

产品规格书


NTR2
Single-channel Narrowband
UHF Narrow Band FM Transceiver
Available for licence-exempt operation in the 433MHz (EU) and 458MHz (UK) bands.
Data rates up to 10kbps
Transmit power: +10dBm (10mW)
Usable range over 500m.

更多资料

产品规格书


NiM2
Single-channel Narrowband
UHF Narrow Band FM Transceiver
Licence-exempt operation in the 433MHz EU band
Can be used in existing low data rate (<10kbps) applications where the operating range of the system using wide band transceivers need to be extended

更多资料

产品规格书


BiM1H
Single-channel Narrowband
VHF Narrowband Transceiver
The BiM1H transceiver modules offer a 500mW RF output VHF data link in Radiometrix transceiver standard pin-out and footprint.

更多资料

产品规格书


BiM1
Single-channel Narrowband
VHF Narrow Band FM transceiver
The BiM1 transceiver modules offer a 100mW RF output VHF data link in Radiometrix transceiver standard pin-out and footprint

更多资料

产品规格书


RX3G
Wideband RX
UHF FM receiver module with RSSI
The RX3G is a PLL synthesiser based miniature PCB mounting UHF radio data receiver. With the matching TX3B-869-64 transmitters, RX3G allows the simple implementation of wireless data links at speeds up to 64kbps and distances up to 75 metres in-building or 300 metres over open ground.

更多资料

产品规格书


RX3A
Wideband RX
UHF FM Data Receiver (with RSSI)
The UHF TX3A transmitter & RX3A receiver are miniature radio modules designed for PCB mounting. They facilitate the simple implementation of data links at speeds up to 64kbps and distances up to 75m in-building or 300m over open ground.

更多资料

产品规格书


RX2A
Wideband RX
433MHz FM Receiver
The TX2A and RX2A data link modules are a miniature PCB mounting UHF radio transmitter and receiver pair which enable the simple implementation of a data link at up to 64 kbps at distances up to 75 metres in-building and 300 metres open ground.

更多资料

产品规格书


RX2
Wideband RX
433MHz FM Receiver
The TX2 and RX2 data link modules are a miniature PCB mounting UHF radio transmitter and receiver pair which enable the simple implementation of a data link at upto 160 kbit/s at distances up to 75 metres in-building and 300 metres open ground.

更多资料

产品规格书


RX2G
Wideband RX
UHF FM Data Receiver Module
The UHF RX2G radio receiver and TX2A transmitter pair which enable the simple implementation of a wireless data link at up to 64 kbps at distances up to 75 metres in-building and 300 metres open ground.

更多资料

产品规格书


RX1
Single-channel VHF
VHF Narrow Band FM Receiver
Miniature VHF radio receiverr designed for PCB mounting. Suitable for extended range data links at speeds up to 10kbps. Link ranges of 10km+ achievable with TX1 Transmitter and suitable choice of data rate and antennas.

更多资料

产品规格书


ENR1
Single-channel VHF
12.5kHz Channel VHF receiver
The ENR1 is a miniature PCB mounting VHF radio data receiver. It is a narrowband 12.5KHz spacing receiver incorporating a received signal strength indicator (RSSI). It allows the simple implementation of data links at speeds up to 5kbps.

更多资料

产品规格书


RX1L
Single-channel VHF
VHF Narrow Band FM Low Current Receiver
The RX1L receiver modules have very low current consumption (1mA). Two versions on the 151.300MHz and 173.225MHz frequencies are available. Compatible with the Radiometrix TX1 and BiM1T transmitters.

更多资料

产品规格书


NRX1
Single-channel VHF
Low cost VHF Narrow Band FM Receiver
The NRX1 is a VHF radio data receiver and it offers a low power, reliable data link in a Radiometrix SIL standard pin out and foot print. It is an enhanced, low cost version of the Radiometrix RX1, but in a slightly larger dimension.

更多资料

产品规格书


CVR1
Single-channel VHF
Low Cost VHF Narrow Band Receiver
The CVR1 receiver modules offers a low cost, reliable data link in a Radiometrix BiM standard pin out and footprint. Available in 173.225MHz frequency as standard. Compatible with the Radiometrix TX1 and BiM1T transmitters.

更多资料

产品规格书


NRX2
Single-channel UHF
UHF Narrow Band FM Receiver
The NRX2 receiver and matching NTX2 transmitter offer a low power, reliable data link in a Radiometrix SIL standard pin out and foot print. This makes the NTX2/NRX2 pair ideally suited to those low power applications where existing single frequency wideband UHF modules have insufficient range.

更多资料

产品规格书


RX2M
Multi-channel RX with 1200 baud modem
UHF Narrow Band FM Multi channel radio Receiver
The RX2M receiver and TX2M transmitter modules offer a low power, reliable data link in an industry-standard pin out and footprint

更多资料

产品规格书


RX1M
Multi-channel RX with 1200 baud modem
VHF Narrow Band FM Multi channel radio Receiver The TX1M transmitter and RX1M receiver modules offer a low power, reliable VHF data link in an industry-standard pin out and footprint

更多资料

产品规格书


SAR3
Narrowband Multi-channel RX
The SAR3 is a miniature PCB mounting UHF radio data receiver. It is a narrowband 25KHz spacing receiver incorporating a received signal strength indicator (RSSI) and 4 channel capability.

更多资料

产品规格书


RLC2H
Narrowband Multi-channel RX
UHF Narrow Band FM Low Cost multi channel radio receiver
low power, reliable data link in an industry standard pin out and foot print
Usable range over 500m (paired with TLC2H Transmitter)

更多资料

产品规格书


PLR2
Narrowband Multi-channel RX
NBFM Multichannel Data Packet Link Receiver
The PL modules use the hardware of the existing LMT/LMR transmitter receiver pair, combined with completely new firmware to produce a simple to use but readily controllable data link

更多资料

产品规格书


LMR2
Narrowband Multi-channel RX
UHF NBFM Low Cost multi channel radio receiver
The LMT2 transmitter and LMR2 receiver modules offer a multi channel, low power, and reliable data link.

更多资料

产品规格书


LMR1
Narrowband Multi-channel RX
VHF NBFM Low Cost multi channel radio receiver
The LMT1 transmitter and matching LMR1 receiver modules offer a multi channel, low power, and reliable VHF data link

更多资料

产品规格书


HVR2
Narrowband Multi-channel RX
UHF Narrow Band FM Vibration immune Multi Channel Receiver
The HVR2 receiver is the high vibration resistant version of the low cost RLC2H receiver. Its unique local oscillator design makes the unit almost immune to mechanical vibrations below 500Hz

更多资料

产品规格书


COR3
Narrowband Multi-channel RX
The COR3 is a 25kHz channel narrowband receiver intended for European 868MHz band Non-Specific SRD applications. The module offers a low power, reliable data link in an industry-standard pin out and footprint.

更多资料

产品规格书


TX3B
Wideband TX
869MHz Wide Band FM Transmitter
The TX3B radio transmitter module is an enhanced high power replacement for the European version TX3A-869-64 transmitter.

更多资料

产品规格书


TX3A
Wideband TX
UHF FM Data Transmitter
The UHF TX3A transmitter & RX3A receiver are miniature radio modules designed for PCB mounting. They facilitate the simple implementation of data links at speeds up to 64kbps and distances up to 75m in-building or 300m over open ground.

更多资料

产品规格书


TX2H
Wideband TX
433MHz High Power Transmitter
The TX2H is a 433.92MHz FM transmitter module with a power output of 25mW nominal.

更多资料

产品规格书


TX2A
Wideband TX
433MHz FM Transmitter
The TX2A and RX2A data link modules are a miniature UHF radio transmitter and receiver pair which enable the simple implementation of a data link at up to 64 kbps at distances up to 75 metres in-building and 300 metres open ground.

更多资料

产品规格书


TX2
Wideband TX
433MHz FM Transmitter
The TX2 transmitter and the RX2 receiver are miniature PCB mounting UHF radio modules which enable the simple implementation of a data link at upto 160 kbit/s at distances up to 75 metres in-building and 300 metres open ground.

更多资料

产品规格书


ENT1
Single-channel high power VHF TX
12.5kHz Channel VHF High Power TX
The ENT1 transmitter modules offer a 100mW RF output VHF data link in Radiometrix SIL standard pin-out and footprint.

更多资料

产品规格书


TX1H
Single-channel high power VHF TX
VHF Narrow Band FM High Power (100mW) Transmitter
The TX1H transmitter offers a 100mW RF output VHF data link in Radiometrix SIL standard pin-out and footprint. Together with the matching RX1 or BiM1R receiver a one-way radio data link can be achieved over a distance up to 10km+ with suitable choice of data rate and antennas.

更多资料

产品规格书


HX1
Single-channel high power VHF TX
VHF Narrow Band FM High Power (300mW) Transmitter
The HX1 transmitter offers a 300mW RF output VHF data link in Radiometrix SIL standard pin-out and footprint. Together with the matching RX1 or BiM1R receiver a one-way radio data link can be achieved over a distance up to 10km+ with suitable choice of data rate and antennas.

更多资料

产品规格书


NTX2
Single-channel
UHF Narrow Band FM Transmitter
The NTX2 transmitter and matching NRX2 receiver offer a low power, reliable data link in a Radiometrix SIL standard pin out and foot print. This makes the NTX2/NRX2 pair ideally suited to those low power applications where existing single frequency wideband UHF modules have insufficient range.

更多资料

产品规格书


TX1
Single-channel VHF Narrow Band FM Transmitter Miniature VHF radio transmitter designed for PCB mounting. Suitable for extended range data links at speeds up to 10kbps. Link ranges of 10km+ achievable with suitable choice of data rate and antennas.

更多资料

产品规格书


TX2M/TX2I
Narrowband Multi-channel TX with 1200 baud modem
UHF Narrow Band FM Multi channel radio Transmitter
The TX2M transmitter and RX2M receiver modules offer a low power, reliable data link in an industry-standard pin out and footprint

更多资料

产品规格书


TX1M
Narrowband Multi-channel TX with 1200 baud modem
VHF Narrow Band FM Multi channel radio Transmitter
The TX1M transmitter and RX1M receiver modules offer a low power, reliable VHF data link in an industry-standard pin out and footprint

更多资料

产品规格书


PLT2
Narrowband Multi-channel TX
NBFM Multichannel Data Packet Link Transmitter
The PL modules use the hardware of the existing LMT/LMR transmitter receiver pair, combined with completely new firmware to produce a simple to use but readily controllable data link

更多资料

产品规格书


LMT3
Narrowband Multi-channel TX
The LMT3 is a 25kHz channel narrowband multichannel transmitter offering up to 25mW RF power. LMT3 can be paired with the Category 1 compliant receiver intended for European 869.2-869.25MHz Social Alarm application.

更多资料

产品规格书


LMT2

Narrowband Multi-channel TX
UHF NBFM Low Cost multi channel radio transmitter
The LMT2 transmitter and LMR2 receiver modules offer a multi channel, low power, and reliable data link.

更多资料

产品规格书


HMT2
Narrowband Multi-channel TX
NBFM Multi-channel 500mW UHF Transmitter|
The HMT2 transmitter module offers a 500mW RF output in the UK 458MHz.
Applications include,
Handheld terminals
On-site paging system (e.g. Nurse call pagers)
Heavy vehicle/machine remote controls
Data loggers

更多资料

产品规格书


TLC2H
Narrowband Multi-channel TX
TLC2H transmitter and matching RLC2H receiver pair offer low power, reliable data link Industry standard pin out and foot print

更多资料

产品规格书


LMT1
Narrowband Multi-channel TX
VHF NBFM Low Cost multi channel radio Transmitter The LMT1 transmitter and matching LMR1 receiver modules offer a multi channel, low power, and reliable VHF data link.

更多资料

产品规格书


NRX2B
Single-channel UHF
The NRX2B receiver paired with NTX2B transmitter offer a low power, reliable data link in a Radiometrix SIL standard pin out and foot print.

更多资料

产品规格书


PA-420
● 磁性电阻非接触式传感器
● 使用电压 :DC3~5.5V
● 有效电气角度 :±45°
● 独产线性度 :±1.5%
● 输出范围 :3.5~6.5%Vin/10°
● 尺寸大小 :Φ16×21mm


更多资料

产品规格书


DM-15
● 数字旋钮
● 显示范围 :000~999
● 显示数值 :1/5000
● 26×49×17mm


更多资料

产品规格书


D-14
● 模拟旋钮
● 圈数 :1~20T
● 显示刻度 :1/1000
● 尺寸大小 :Φ 40×34mm


更多资料

产品规格书


D-12
● 模拟旋钮
● 圈数  :0~10T
● 显示刻度 :1/500
● 尺寸大小 :Φ 22×26mm


更多资料

产品规格书


WR-7UH360
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :360°
● 独立线性度 :±0.4%
● 输出范围 :5-95% Vin
● □61×32mm


更多资料

产品规格书


WR-7UH200
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :200°
● 独立线性度 :±0.8%
● 输出范围 :5-95% Vin
● □61×32mm


更多资料

产品规格书


WR-7UH
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :120°
● 独立线性度 :±0.4%
● 输出范围 :5-95% Vin
● □61×32mm


更多资料

产品规格书


7450POT
● 导电塑料倾斜角度传感器
● 电阻值 :500Ω  ±20%
● 有效电气角度 :120°
● 独立线性度 :±1%
● 迟滞 :0.5 %
● W88×D50×H60mm


更多资料

产品规格书


ESC1045ZA
● 倾斜角度非接触式传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2.5%
● 输出范围 :10~90%Vin
● W58×D42×H21mm


更多资料

产品规格书


ESC1030ZA
● 倾斜角度非接触式传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±30°
● 独立线性度 :±1.5%
● 输出范围 :10~90%Vin
● W58×D42×H21mm


更多资料

产品规格书


ESC1020ZA
● 倾斜角度非接触式传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±20°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● W58×D42×H21mm


更多资料

产品规格书


ESC1010ZA
● 倾斜角度非接触式传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±10°
● 独立线性度 :±0.5%
● 输出范围 :10~90%Vin
● W58×D42×H21mm


更多资料

产品规格书


PMP-30HTL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±30°
● 独立线性度 :±1.5%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-20HTL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±20°
● 独产线性度 :±1%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-10HTL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±10°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-5HTL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±5°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-30HTZL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±30°
● 独立线性度 :±1.5%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-20HTZL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±20°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-5HTZL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±5°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-10HTZL
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±10°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● W92×D49×H60mm


更多资料

产品规格书


PMP-S30HT
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±30°
● 独立线性度 :±1.5%
● 输出范围 :10~90% Vin
● 尺寸大小 :Φ 20×40mm


更多资料

产品规格书


PMP-S20HT
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±20°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● 尺寸大小 :Φ 20×40mm


更多资料

产品规格书


PMP-S5HT
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±5°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● 尺寸大小 :Φ 20×40mm


更多资料

产品规格书


PMP-S10HT
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±10°
● 独立线性度 :±1%
● 输出范围 :10~90% Vin
● 尺寸大小 :Φ 20×40mm


更多资料

产品规格书


UV-00H
● 单轴倾角传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±30°/ ±45°/ ±60°(标准)
● 线性度 :±2%FS (FS=60°);±4%FS (FS=90°,120°)
● 输出灵敏度  :MIN.0.54  %Vin/°
● 倾斜角灵敏度  :MAX. 0.4° (Effective Electrical Tilt Angle: ±30°);MAX. 0.8° (Effective Electrical Tilt Angle: ±45°, ±60°)
● 尺寸大小 :□30×40mm


更多资料

产品规格书


UV-3HF
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :±20°
● 独立线性度 :±4%
● 输出范围 :20~80% Vin
● 倾斜角灵敏度  :max0.5°
● 尺寸大小 :Φ 20×26mm


更多资料

产品规格书


CPP-45-50LS
● 导电塑料直线位移传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效量程 :500mm
● 独立线性度 :±0.3%
● 齿隙 :±0.5%
● □60×104mm

*  附件 :连接器


更多资料

产品规格书


LP-45-200LS
● 导电塑料直线位移传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效量程 :2000mm
● 独立线性度 :±0.3%
● 齿隙 :±0.5%
● □60×104mm

*  附件  :连接器


更多资料

产品规格书


CPP-45-150LS
● 导电塑料直线位移传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效量程 :1500mm
● 独立线性度 :±0.3%
● 齿隙 :±0.5%
● □60×104mm

*  附件  :连接器


更多资料

产品规格书


LP-750FX
● 导电塑料直线位移传感器
● 电阻值  :20KΩ  ±20%
● 有效量程 :750mm
● 独立线性度 :±0.1%
● □34×820mm


更多资料

产品规格书


LP-500FX
● 导电塑料直线位移传感器
● 电阻值 :10KΩ  ±20%
● 有效量程 :500mm
● 独立线性度 :±0.1%
● □34×570mm


更多资料

产品规格书


LP-300FJS
● 导电塑料直线位移传感器
● 电阻值  :10KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :300mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ23×88~338mm


更多资料

产品规格书


LP-250FJS
● 导电塑料直线位移传感器
● 电阻值 :5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :250mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-200FJS
● 导电塑料直线位移传感器
● 电阻值  :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :200mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP150FJS
● 导电塑料直线位移传感器
● 电阻值 :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :150mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-100FJS
● 导电塑料直线位移传感器
● 电阻值  :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :100mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-50FJS
● 导电塑料直线位移传感器
● 电阻值  :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :50mm
● 独立线性度 :±0.5 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-300FJ
● 导电塑料直线位移传感器
● 电阻值  :10KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :300mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-250FJ
● 导电塑料直线位移传感器
● 电阻值  :5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :250mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-200FJ
● 导电塑料直线位移传感器
● 电阻值  :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :200mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ23×88~338mm


更多资料

产品规格书


LP-150FJ
● 导电塑料直线位移传感器
● 电阻值  :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程  :150mm
● Independent Linearity :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-100FJ
● 导电塑料直线位移传感器
● 电阻值  :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :100mm
● 独立线性度 :±0.3 %
● 尺寸大小 :Φ 23×88~338mm


更多资料

产品规格书


LP-50FJ
● 导电塑料直线位移传感器
● 电阻值 :1k、5KΩ  ±20%
● 使用电压 :maxDC36V/50℃
● 有效量程 :50mm
● 独立线性度 :±0.5 %
● 尺寸大小 :Φ23×88~338mm








更多资料

产品规格书


LP-30FQJ
● 导电塑料直线位移传感器
● 电阻值 :1KΩ  ±20%
● 有效量程  :30mm
● 独立线性度 :±1%
● 尺寸大小 :Φ8×63mm


更多资料

产品规格书


LP-50FP
● 导电塑料直线位移传感器
● 电阻值 :1KΩ  ±20%
● 有效量程 :50mm
● 独立线性度 :±1%
● 尺寸大小

:Φ12×58mm



更多资料

产品规格书


LP-30FP
● 导电塑料直线位移传感器
● 电阻值 :1KΩ  ±20%
● 有效量程 :30mm
● 独立线性度 :±1%
● 尺寸大小 :Φ12×58mm


更多资料

产品规格书


LP-20FP
● 导电塑料直线位移传感器
● 电阻值 :1KΩ  ±20%
● 有效量程 :20mm
● 独立线性度 :±1%
● 尺寸大小 :Φ12×58mm


更多资料

产品规格书


LP-20FBS-3
● 导电塑料直线位移传感器
● 电阻值 :1k、2KΩ  ±20%
● 有效量程 :20mm
● 独立线性度 :±1%
● 尺寸大小 :Φ 28×123mm

*  内置回位弹簧
*  附件 :连接器


更多资料

产品规格书


LP-10FBS-3
● 导电塑料直线位移传感器
● 电阻值 :1KΩ  ±20%
● 有效量程 :10mm
● 独立线性度 :±1%
● 尺寸大小 :Φ 28×112mm

*  内置回位弹簧
*  附件  :连接器


更多资料

产品规格书


LP-20FB
● 导电塑料直线位移传感器
● 电阻值 :1k、2KΩ  ±20%
● 有效量程 :20mm
● 独立线性度 :±1%
● 尺寸大小 :Φ 25×52mm

*  内置回位弹簧


更多资料

产品规格书


LP-20F
● 导电塑料直线位移传感器
● 电阻值 :1k、2KΩ  ±20%
● 有效量程 :20mm
● 独立线性度 :±1%
● 尺寸大小 :Φ 25×52mm


更多资料

产品规格书


LP-10FB
● 导电塑料直线位移传感器
● 电阻值 :1KΩ  ±20%
● 有效量程 :10mm
● 独立线性度 :±1%
● □25×37mm

*   内置回位弹簧


更多资料

产品规格书


LP-10F
● 导电塑料直线位移传感器
● 电阻值 :1KΩ
● 有效量程 :10mm
● 独立线性度 :±1%
● □25×37mm


更多资料

产品规格书


LP-10HA
● 霍尔元件直线位移(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效量程 :10mm
● 独立线性度 :±2%
● 输出范围 :10-90%
● W46×D33×H23mm


更多资料

产品规格书


CP-2UTN
● 磁性电阻非接触式传感器
● 使用电压 :Max DC10V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :Min 2%Vin/10°
● 转轴直径 :Φ16×22mm


更多资料

产品规格书


CP-2UN
● 磁性电阻非接触式传感器
● 使用电压 :MAX DC10V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :Min 2%Vin/10°
● 转轴直径 :Φ16×22mm


更多资料

产品规格书


CP-16
● 接触线绕线传感器(多匝传感器)
● 有效电气角度 :3600°
● 独立线性度 :±1.5%
● 输出范围 :Max 0.25%
● 转轴直径 :Φ   mm


更多资料

产品规格书


CP-45H-100S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :35000°MAX
● 多圈型(齿轮传动比100:1)
● 独立线性度 :±0.3%(齿隙:±0.03%)
● 输出范围 :5-95% Vin
● W61×D50×H49mm


更多资料

产品规格书


CP-45H-10S

● 霍尔元件(非接触式)传感器
● 使用电压 :DC5V ±0.5V
● 有效电气角度 :3500°MAX
● 多圈型(齿轮传动比10:1)
● 独立线性度 :±0.2%(齿隙:±0.03%)
● 输出范围 :5-95% Vin
● W61×D50×H49mm


更多资料

产品规格书


CP-45HP-10V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC14-32V
● 有效电气角度 :±360°
● 独立线性度 :±1%
● 输出范围 :DC0-10V
● 转轴直径 :Φ45×25mm
● 两轴
* 可提供2路输出


更多资料

产品规格书


CP-45HSP-A
● 霍尔元件(非接触式)传感器
● 使用电压 :DC24±4V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC4-20mA
● 转轴直径 :Φ45×25mm
● 两轴
* 可提供2路输出


更多资料

产品规格书


CP-45HSC-A
● 霍尔元件(非接触式)传感器
● 使用电压 :DC24±4V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC4-20mA
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HP-A
● 霍尔元件(非接触式)传感器
● 使用电压 :DC24±4V
● 有效电气角度 :360°
● 绝对线性度 :±1%
● 输出范围 :DC4-20mA
● 转轴直径 :Φ45×25mm



更多资料

产品规格书


CP-45HC-A
● 霍尔元件(非接触式)传感器
● 使用电压 :DC24±4V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC4-20mA
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HS-A
● 霍尔元件(非接触式)传感器
● 使用电压 :DC24±4V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC4-20mA
● 转轴直径 :Φ45×25mm





更多资料

产品规格书


CP-45H-A
● 霍尔元件(非接触式)传感器
● 使用电压 :DC24±4V
● 有效电气角度 :360°
● 绝对线性度 :±1%
● 输出范围 :DC4-20mA
● 转轴直径 :Φ45×25mm
● 两轴
* 可提供2路输出


更多资料

产品规格书


CP-45HSP-10V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC14-32V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC0-10V
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HSC-10V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC14-32V
● 有效电气角度 :360
● 独立线性度 :±1%
● 输出范围 :DC0-10V
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HC-10V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC14-32V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC0-10V
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HS-10V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC14-32V
● 有效电气角度  :360°
● 独立线性度 :±1%
● 输出范围 :DC0-10V
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45H-10V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC14-32V
● 有效电气角度 :360°
● 绝对线性度 :±1%
● 输出范围 :0-10V
● 转轴直径 :Φ45×25mm
● 两轴
* 可提供2路输出


更多资料

产品规格书


CP-45HSP-5V
● 霍尔元件(非接触式)传感器
● 使用电压 :8-32V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC0-5V
● 转轴直径 :Φ45×25mm



更多资料

产品规格书


CP-45HSC-5V
● 霍尔元件(非接触式)传感器
● 使用电压 :8-32V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC0-5V
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HP-5V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC8-23V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC0-5V
● 转轴直径 :Φ45×25mm





更多资料

产品规格书


CP-45HC-5V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC8-32V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC0-5V
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HS-5V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC8-32V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :DC0-5V
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45H-5V
● 霍尔元件(非接触式)传感器
● 使用电压 :DC8-32V
● 有效电气角度 :360°
● 独立线性度 :±1%
● 输出范围 :0-5V
● 转轴直径 :Φ45×25mm
● 两轴
* 可提供2路输出


更多资料

产品规格书


CP-45HSP
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5±0.5VV
● 有效电气角度 :360°
● 独立线性度 :±0.4%
● 输出范围 :10%-90%Vin
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HSC
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5±0.5V
● 有效电气角度 :360°
● 独立线性度 :±0.4%
● 输出范围 :10%-90%Vin
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HP
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5±0.5V
● 有效电气角度 :360°
● 独立线性度 :±0.4%
● 输出范围 :10%-90%Vin
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45HC
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5±0.5V
● 有效电气角度 :360°
● 独立线性度 :±0.4%
● 输出范围 :10%-90%Vin
● 转轴直径 :Φ45×25mm



更多资料

产品规格书


CP-45HS
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5±0.5V
● 有效电气角度 :360°
● 独立线性度 :±0.4%
● 输出范围 :10%-90%Vin °
● 转轴直径 :Φ45×25mm


更多资料

产品规格书


CP-45H
● 霍尔元件(非接触式)传感器
● 使用电压 :DC5±0.5V
● 有效电气角度 :360°
● 独立线性度 :±0.4%
● 输出范围 :10%-90%Vin
● 转轴直径 :Φ45×25mm



更多资料

产品规格书


CPP-45-100SX
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :35000°
● 多圈型(齿轮传动比 100:1)
● 独立线性度 :±0.33% (齿隙:±0.03%)
● W61×D50×H49mm


更多资料

产品规格书


CPP-45-60SX
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :21000°
● 多圈型(齿轮传动比 60:1)
● 独立线性度 :±0.33% (齿隙:±0.03%)
● W61×D50×H49mm


更多资料

产品规格书


CPP-45-35SX
● 导电塑料角度传感器
● 电阻值  :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :12250°
● 多圈型(齿轮传动比 35:1)
● 独立线性度 :±0.33% (齿隙:±0.03%)
● W61×D50×H49mm



更多资料

产品规格书


CPP-45-24SX
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度   :8400°
● 多圈型(齿轮传动比 24:1)
● 独立线性度 :±0.33% (齿隙:±0.03%)
● W61×D50×H49mm


更多资料

产品规格书


CPP-45-10SX
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :3500°
● 多圈型(齿轮传动比 10:1)
● 独立线性度 :±0.33% (齿隙:±0.03%)
● W61×D50×H49mm


更多资料

产品规格书


CPP-60
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :355°
● 独立线性度 :±0.05%
● 转轴直径 :Φ62×28mm
*  精度高


更多资料

产品规格书


CPP-45RBN
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :350°
● 独立线性度 :±0.3%
● 转轴直径 :Φ45×118mm

*  附件 :连接器


更多资料

产品规格书


CPP-45SB
● 导电塑料角度传感器
● 电阻值  :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :350°
● 独立线性度 :±0.3%
● 转轴直径 :Φ 45×18mm

*  防水型(接线端子除外)







更多资料

产品规格书


CPP-45BX2
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :350°
● 独立线性度 :±0.3%
● 轴径 :Φ 6mm
● 尺寸大小 :Φ 45×38mm


更多资料

产品规格书


CPP-45B
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :350°
● 独立线性度 :±0.3%
● 轴径 :Φ 6mm
● 尺寸大小  :Φ 45×31mm
● 两轴


更多资料

产品规格书


CPP-45
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10K、20kΩ±15%
● 有效电气角度 :350°
● 独立线性度 :±0.3%
● 轴径 :Φ 4mm
● 尺寸大小 :Φ 45×31mm
● 两轴


更多资料

产品规格书


CPP-35B
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10KΩ  ±20%
● 有效电气角度 :340°
● 独立线性度 :±1%
● 轴径 :Φ 6mm
● 尺寸大小 :Φ 37×23mm
● 两轴


更多资料

产品规格书


CPP-35
● 导电塑料角度传感器
● 电阻值 :1k、2k、5K、10KΩ  ±15%
● 有效电气角度 :340°
● 独立线性度 :±1%
● 轴径 :Φ 4mm
● 尺寸大小 :Φ37×25mm
● 两轴


更多资料

产品规格书


CP-3HK-100
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :90~360°
● 独立线性度 :±0.4%FS
● 输出范围 :5~95%Vin
● 42×63×H32mm


更多资料

产品规格书


CP-2UKN-A
● 磁性电阻非接触式传感器
● 使用电压 :DC24V ±4V
● 有效电气角度 :±45°
● 独立线性度 :±2.2%
● 输出范围 :4-20mA
● 42×63×H32mm


更多资料

产品规格书


CP-2HK-10R
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 10V±0.5V
● 有效电气角度 :±40°
● 独立线性度 :±0.5%
● 输出范围 :10-90%Vin
● 42×63×H32mm


更多资料

产品规格书


CP-2HK-8R
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 8V±0.5V
● 有效电气角度 :±40°
● 独立线性度 :±0.5%
● 输出范围 :10-90%Vin
● 42×63×H32mm


更多资料

产品规格书


CP-2HK
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±40°
● 独立线性度 :±0.5%
● 输出范围 :10-90%Vin
● 42×63×H32mm


更多资料

产品规格书


CP-30H
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±50°
● 独立线性度 :±3%
● 输出范围 :10-90%Vin
● 尺寸大小 :Φ 28×29mm

* 低扭矩(max 0.3mN﹒m)


更多资料

产品规格书


QP-3HBB-110-01
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度

:±2%

● 输出范围 :10~90%Vin
● 尺寸大小 :Φ39×17mm

*  内置回位弹簧


更多资料

产品规格书


QP-3HBB-100-01
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 : 10~90%Vin
● 尺寸大小 : Φ39×17mm

*  内置回位弹簧


更多资料

产品规格书


QP-3HB-211-02
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 : 10~90%Vin
● 尺寸大小 :Φ39×17mm

2路输出  内置回位弹簧


更多资料

产品规格书


QP-3HB-210-01
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 39×17mm

*  2路输出  内置回位弹簧


更多资料

产品规格书


QP-3HB-201-02
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ39×17mm

*  2路输出  内置回位弹簧


更多资料

产品规格书


QP-3HB-200-01
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ39×17mm

*  2路输出  内置回位弹簧


更多资料

产品规格书


QP-3HB-111-02
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ39×17mm

*  内置回位弹簧


更多资料

产品规格书


QP-3HB-110-01
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ39×17mm

*  内置回位弹簧


更多资料

产品规格书


QP-3HB-101-02
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ39×17mm

*  内置回位弹簧


更多资料

产品规格书


QP-3HB-100-01
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±2%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ39×17mm

*  内置回位弹簧


更多资料

产品规格书


CP-3HABS
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±3%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 40×18mm

*  2路输出 内置回位弹簧


更多资料

产品规格书


CP-22HSC-50S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :18000°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HSC-30S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :10800°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HSP-12S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :4320°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HSC-5S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :1800°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HS-50S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :18000°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HS-30S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :10800°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HS-12S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :4320°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HS-5S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :1800°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HP-50S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :18000°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HC-30S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :10800°
● 独立线性度 :±1 %
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HC-12S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :4320°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22HP-5S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :1800°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22H-50S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :18000°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22H-30S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :10800°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22H-12S
● 霍尔元件(非接触式)传感器
● 使用电压 : DC 5V±0.5V
● 有效电气角度 :4320°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-22H-5S
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :1800°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● W22×D30×H44mm

*  可提供2路输出


更多资料

产品规格书


CP-2FWP-10S
● 导电塑料角度传感器
● 电阻值 :1k、2k、5kΩ  ±20%
● 有效电气角度 :3400°
● 多圈型(齿轮传动比10:1)
● 独立线性度  :±1.5%FS (齿隙:±0.5%)
●  W27×D35×H47mm


更多资料

产品规格书


CP-2F-50S-RB
● 导电塑料角度传感器
● 电阻值 :1k、2k、5kΩ  ±20%
● 有效电气角度 :17000°
● 多圈型(齿轮传动比 50:1)
● 独立线性度 :±1.5%FS (齿隙:±0.5%)
● W30×D30×H30mm


更多资料

产品规格书


CP-2F-35S-RB
● 导电塑料角度传感器
● 电阻值 :1k、2k、5kΩ  ±20%
● 有效电气角度 :11900°
● 多圈型(齿轮传动比 35:1)
● 独立线性度 :±1.5%FS (齿隙:±0.5%)
● W30×D30×H30mm


更多资料

产品规格书


CP-2F-10S-RB
● 导电塑料角度传感器
● 电阻值 :1k、2k、5kΩ  ±20%
● 有效电气角度 :3400°
● 多圈型(齿轮传动比10:1)
● 独立线性度 :±1.5%FS (齿隙:±0.5%)
● W30×D30×H30mm


更多资料

产品规格书


CP-2F-10S-RB-1
● 导电塑料角度传感器
● 电阻值 :1k、2k、5kΩ  ±20%
● 有效电气角度 :3400°
● 多圈型(齿轮传动比 10:1)
● 独立线性度 :±1.5%FS (齿隙:±0.5%)
● W30×D30×H30mm


更多资料

产品规格书


CP-20HBSC
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm
● 2路输出


更多资料

产品规格书


CP-20HBP
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm
● 2路输出


更多资料

产品规格书


CP-20HSP
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm
● 2路输出


更多资料

产品规格书


CP-20HC
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm
● 2路输出


更多资料

产品规格书


CP-2HBS
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm


更多资料

产品规格书


CP-20HB
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm


更多资料

产品规格书


CP-20HS
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm


更多资料

产品规格书


CP-20H
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±1%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 22×12.5mm


更多资料

产品规格书


CP-2HB
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±3%FS
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 20×11mm


更多资料

产品规格书


QP-2HC
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±1.5%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ15×14mm(滚珠轴承)

* 低扭矩 (max 0.5mN﹒m)


更多资料

产品规格书


QP-2H
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :±45°
● 独立线性度 :±1.5%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ15×14mm(滚珠轴承)

* 低扭矩 (max 0.5mN﹒m)


更多资料

产品规格书


CP-2HA
● 霍尔元件(非接触式)传感器
● 使用电压 :DC 5V±0.5V
● 有效电气角度 :340°
● 独立线性度 :±0.5%
● 输出范围 :10~90%Vin
● 尺寸大小 :Φ 50×25mm

*  2路输出


更多资料

产品规格书


CP-2FABSJ
● 导电塑料角度传感器
● 电阻值 :1kΩ    ±20%
● 有效电气角度 :90°
● 独立线性度 :±3%
● 使用电压 :maxDC18V
● 尺寸大小 :Φ 50×25mm
*  内置回位弹簧
*  可提供2路输出


更多资料

产品规格书



中国香港:(852)9833 8262
中国深圳:(86)13828873320
电子邮箱: info@dunkantex.com
东槿(国际)有限公司    版权所有
Copyright © Dunkantex Int'l Co., Ltd. 2015. All rights reserved
